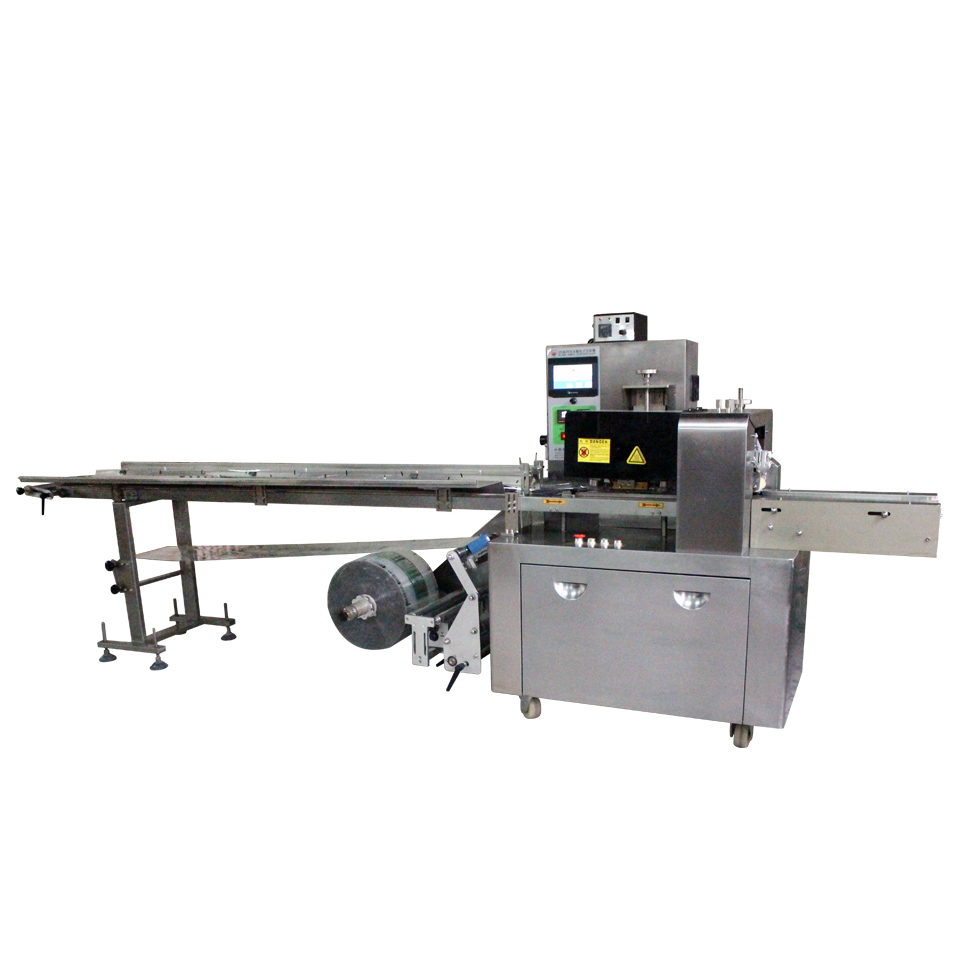

Down-paper Pillow Packaging MachineApproximate product
No.：DZB4
Application:
Suitable for packaging soft、stripe and unorganized objects like candied haws on a stick、crunchy candy、haw flakes、compote fruit、red dates、jelly drops、squid、egg roll、wet tissue、disposable plastic forks & knives、toothbrush etc.
Characteristic:
1、Human Machine Interaction-easy to setup parameter;2、2Automatic diagnostic function-clear to show the fault;
3、High sensitivity photoelectric detector for film tracking
4、Positioned stop function, without sticking knife or wasting film;
5、Independent temperature controller-suitable for various packing materials;
6、Simple drive system-convenient to maintaining;
Optional:
coding machine/nitrogen gas charging device/ultraviolet sterilization device/ethanol spray
Technical Parameters：
| Model | DZB4-BJ240 | DZB4-BJ320 |
| Packing speed | 30-220包/分 | 30-220包/分 |
| Width of film | 240mm | 320mm |
| Film roll diameter | 320mm | 320mm |
| Film thickness | 0.03-0.06mm | 0.03-0.06mm |
| Bag length | 75-190mm或150-350mm | 110-250mm或200-420mm |
| Bag width | 30-100mm | 30-150mm |
| Max height | Max.35mm | Max.50mm |
| Power supply | 220V50/60HZ单相 | 220V50/60HZ单相 |
| Power Consumption | 2.8kw | 2.8kw |
| Weight | 600kg | 600kg |
| Dimensions | 3900*840*1330mm | 3900*840*1330mm |
| Dimensions | 2300*1050*1700mm | 2300*1050*1700mm |
| Conveyor outer packaging size | 2700*600*400mm | 2700*600*400mm |
